Plan 17-860 Features

Bedrooms & Baths:

Guest suite

Kitchen:

Island

Eating bar

Nook / breakfast

Interior Features:

Family room

Formal dining room

Formal living room

Den / office / computer

Plan 17-860 Detail

Bedrooms: 3

Full Baths: 1

Half Baths: 1

Levels/Stories: 1

Garage Stalls: 2

Total Sq. Ft.: 3248

Main floor: 3248

Garage: 898

Porches: 60

Width: 85' 8"

Depth: 98' 3"

Height: 24' 7"

Roof Pitch (primary): 4:12

Walls: 2"x6"

Ceiling Height (Main): 9'

Short Description

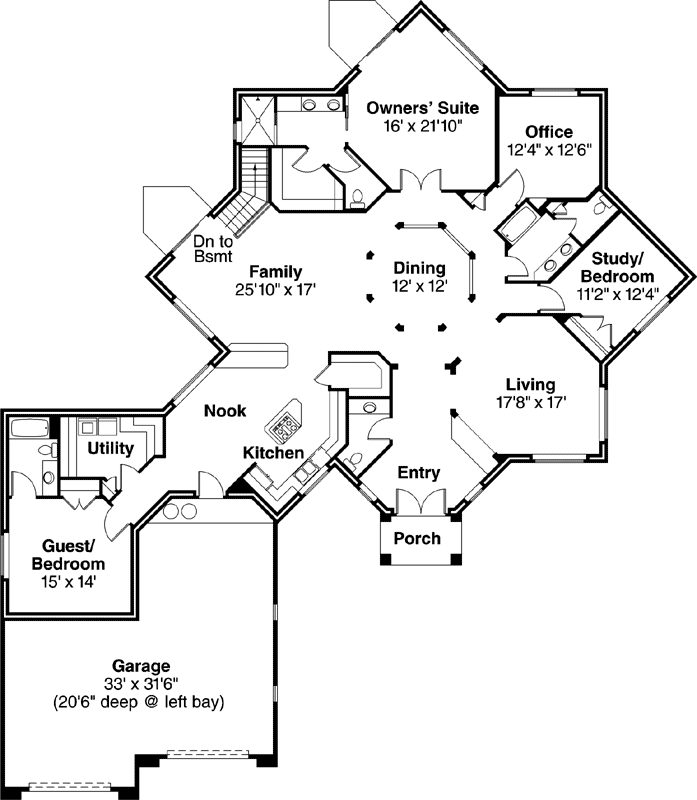

The design is an intriguing Mediterranean-style home that is unique in a number of aspects. And not counting the garage or basement this plan provides more than 3000 square feet of living area including four bathrooms. Designed for a frequently hot climate exterior walls are doubly thick to allow for added insulation. Plus three-foot overhangs let in abundant light while minimizing the heat impact of direct sunbeams. From the street the first thing you might notice is the octagonal crown of clerestory windows rising above the rest of the concrete tile roof. Also unique is the home's orientation set at a 45-degree angle to the street. Handsome stucco columns flank the front entry. Inside the multi-angled entry openings on the right lead into an unusually shaped living room. A convenient powder room is on the entry's left side. Straight ahead the entry spills into a bright and spacious family room which is open to both the kitchen and the dining room. The dining room's octagonal shape is a reflection of the octagonally framed clerestory windows centered high above it. The three sides of the dining room nearest the bedrooms and office are privacy walls while the other five sections are totally open for ease of accessibility. A raised eating bar and standard-level counter offer partial separation between the kitchen and family room. Kitchen amenities also include a deep walk-in pantry central work island and spacious nook. The roomy garage plus a utility room and guest bedroom are linked to the nook. The owners' suite and an office sit at the rear of the plan over a partial basement. Bathroom features here include a large shower and walk-in closet double vanity and private toilet.
