Plan 7-843 Features

Lot Characteristics:

Suited for a front view

Suited for a narrow lot

Suited For A Vacation Home

Bedrooms & Baths:

Main floor Master

Kitchen:

Island

Interior Features:

Great room

Loft / balcony

Open concept floor plan

No formal living/dining

Exterior Features:

Screened porch/sunroom

Unique Features:

Vaulted/Volume/Dramatic ceilings

Plan 7-843 Detail

Bedrooms: 4

Full Baths: 4

Levels/Stories: 1

Garage Stalls: 4

Total Sq. Ft.: 2914

Main floor: 2914

Garage: 874

Width: 84' 0"

Depth: 65' 0"

Height: 23' 6"

Roof Pitch (primary): 8:12

Roof Pitch (secondary): 6:12

Walls: 2"x6"

Ceiling Height (Main): 8'

Short Description

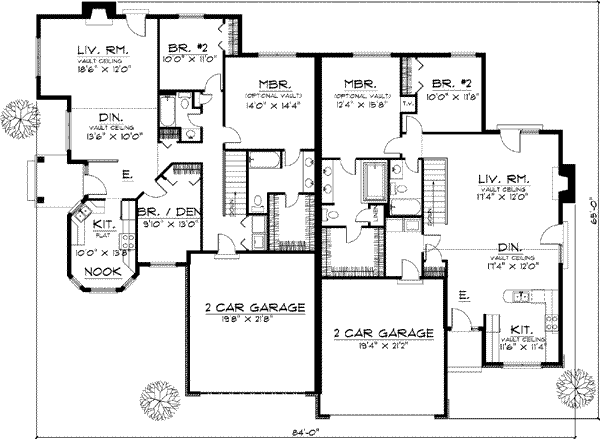

Unit A of this traditional duplex is larger than Unit B and is highlighted by a bay window in the kitchen and nook area just off the entry. The living and dining rooms of Unit A feature vaulted ceilings and work together to create a living space large enough for entertaining. The master suite in this unit lies behind the garage and includes a large walk-in closet. The second bedroom is just next to the master at the back of the unit and has direct access to the full bath just off the hall. A third bedroom can double as a den just off the entry. Unit B is slightly smaller and is only a 2-bedroom unit. A breakfast bar in the kitchen overlooks the dining and living rooms and blends to create an open plan. Vaulted ceilings can be found throughout this area. The master suite also lies just behind the garage and it too has a large walk-in closet. The second bedroom is found next to the master at the back of the unit.

Design Comments

Unit A - 1499 sq. ft. Unit B - 1,415 sq. ft.

	Open the door to your dream house! (800)977-5267 Call Monster House Plans to learn more about buying and customizing house plans in our collection. 6am-6pm Pacific Time

Plan Sets

	5-set		$1894
	This is the basic package that includes what most owner/builders need in paper form.

	8-set		$2010
	This is the basic package that includes what most owner/builders need in paper form.

	PDF (recommended)		$2768
	This is the package you would want to buy if you want your plans right now, want to save the shipping costs, and are willing to have your copies made locally. Changes can also be made with PDF's.

	CAD		$5390
	This is the package you would want to buy if you are planning on making substantial modifications to the drawings and want to be able to make as many copies locally as you want.

Foundation Options

	Basement	Standard With Plan
	Crawlspace	$ 650
	Slab	$ 650

Other Options

Right Reading Reverse - The plan is reversed with all text reading correctly.

$395

Extra Sets - Additional sets are available only with the purchase of a construction set (8 copy, or 5 copy).

$80

Additional Build License

$500

	Open the door to your dream house! (800)977-5267 Call Monster House Plans to learn more about buying and customizing house plans in our collection. 6am-6pm Pacific Time

Refund / Exchange Policy:

Plans printed by MonsterHousePlans.com's designers are refundable within 10 business days of purchase under the following conditions:

Plans are in their sealed, original packaging and have not been opened (to be determined by the firm that shipped the original order). Customer will pay a 20% re-stocking fee plus all shipping charges. Reproducibles, CAD Files & PDF's are not refundable under any circumstances due to copyright issues.

Plans ordered from MonsterHousePlans.com may be exchanged within 30 days of purchase under the following conditions:

Upon designer approval, customer may exchange for a plan within the same designer's collection (plan number to have same prefix). Customer will pay 20- 40% of the amount of the original order for re-stocking, plus the difference in cost if exchanging for a higher priced plan. Customer will also be responsible for all shipping charges. Reproducibles, CAD Files & PDF's are not exchangeable under any circumstances due to copyright issues.

Important Stuff

MonsterHousePlans provides home plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
1. Wind / hurricane / tornado
2. Seismic / earthquake
3. Heavy snow
4. Flood potential
5. Soil instability
Customer understands that HVAC, Plumbing & Electrical will not be included in plans (other than location of plumbing fixtures and electrical lights, plugs & switches*).

Purchaser agrees that the use of the plan is for the construction of one house only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.

*Unless otherwise noted.
